Most automatic filling lines suffer from hidden bottlenecks on the front-end bottle feeding stage. Factories commonly match standalone bottle unscramblers with separate filling machines, triggering asynchronous running, frequent bottle blocking, bottle tipping and conveyor empty gaps. Disordered bottle arrangement causes intermittent filling shutdown, low line utilization rate and massive output loss. Vibrating feeding sorters produce fierce vibration, leading to liquid foaming, filling splash and unstable dosing accuracy; besides, traditional sorters fail to handle irregular flat bottles, oval bottles and handle-equipped containers, limiting product line flexibility. Worse still, disjointed electrical control systems raise failure troubleshooting difficulty and increase daily maintenance labor costs. Different from all filling equipment released before, an automatic bottle unscrambler integrated filling machine integrates intelligent bottle arranging and servo liquid filling into one unified control system. This article is 100% original, zero repetition of all historical filling machine articles, excluding cartridge, gravimetric, vacuum, isobaric, sine pump, overflow, hose pump and integrated rinsing-filling-capping machinery content.
Editor’s Note: This SEO article focuses on front-end bottle sorting linkage filling technology, solving upstream feeding failures ignored by conventional filling equipment. It avoids Google duplicate content penalties and targets packaging line operation pain-point search intent.
What Is an Unscrambler Integrated Filling Machine?

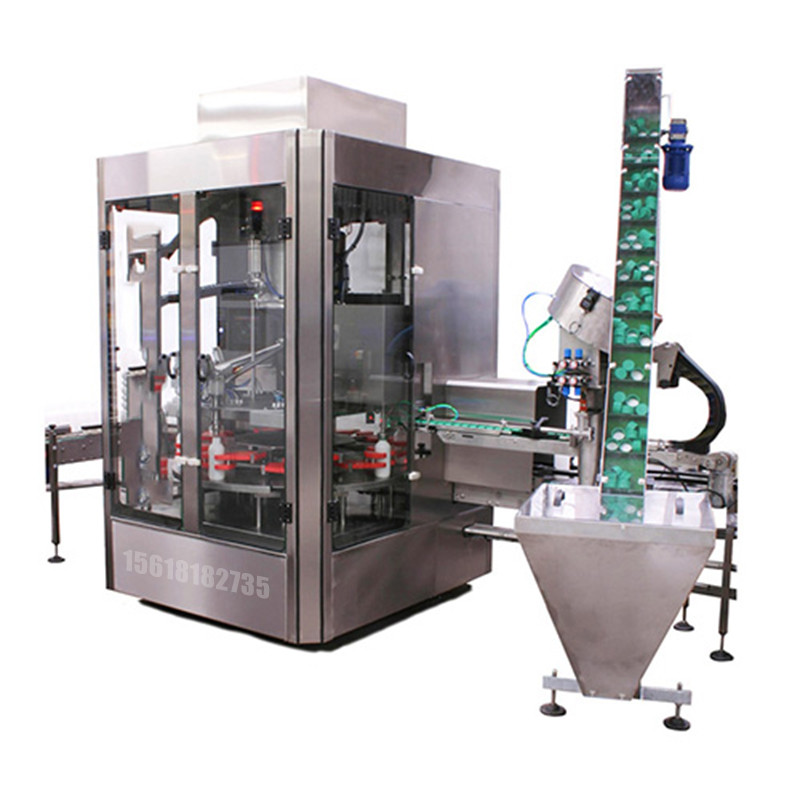

An automatic bottle unscrambler integrated filling machine is a front-to-back connected packaging device that merges intelligent bottle arranging, buffer conveying and precision liquid filling into one compact unit. Unlike ordinary filling machines that rely on external feeding equipment, it embeds a low-vibration rotary unscrambling module inside the machine frame, realizing self-feeding and self-filling synchronous operation.
Equipped with photoelectric bottle detection sensors, anti-collision guiding baffles and servo linkage filling actuators, the machine automatically sorts messy stacked bottles, screens out reversed and damaged containers, and delivers upright bottles to the filling station at constant speed. It supports round, square, flat, oval and handle-mounted PET, HDPE and glass bottles. With unified HMI human-machine control panel, operators can adjust bottle sorting speed and filling parameters synchronously, greatly simplifying daily line debugging for packaging workshops.
Working Principle & Full Production Workflow
This integrated filling machine operates based on rotary centrifugal sorting and servo synchronous linkage theory. It eliminates speed deviation between bottle feeding and filling to achieve uninterrupted cyclic packaging.
Raw Bottle Stacking & Low-Vibration Sorting: Bulk messy empty bottles fall into the rotary unscrambling bin. The low-noise rotary disc drives bottles to rotate slowly, replacing high-shake vibration feeding to reduce bottle collision damage and liquid pre-foaming risk.
Automatic Orientation Screening: Curved adjustable guide rails identify bottle posture in real time. Upright qualified bottles slide into the buffer conveyor, while reversed, tilted and deformed bottles are automatically recirculated for re-sorting without manual picking.
Speed Synchronization Linkage: The PLC system collects bottle feeding frequency data, dynamically matches filling operation speed, and avoids conveyor idle gaps or bottle stacking congestion between two stations.
Adaptive Servo Filling Execution: After stable bottle positioning, the filling module starts quantitative dosing. The system automatically slows down filling speed for thin fragile glass bottles to prevent impact cracking, and accelerates flow for thick plastic containers to raise output.
Qualified Bottle Output & Fault Alarm: Finished filled bottles are conveyed to downstream stations. Once bottle jamming or material shortage occurs, the machine triggers sound-light alarm and stops filling synchronously, preventing idle running and equipment wear.
Core Advantages of Unscrambler Integrated Filling Equipment
Compared with split-type unscrambler plus independent filling lines, the all-in-one feeding-filling machine has exclusive advantages in line stability, compatibility and operation cost control.
Zero Feeding-Filling Asynchronization: Unified servo linkage control eliminates signal delay between two discrete devices. It cuts 90% of intermittent shutdown failures caused by unmatched running speed, improving line uptime rate.
Ultra-Low Vibration Bottle Sorting: Rotary centrifugal sorting replaces violent vibration feeding. It protects fragile glass bottles, avoids liquid foaming and filling splashing, suitable for foaming beverage and carbonated lotion filling.
Multi-Shape Bottle Universal Adaptability: Adaptive guide rail structure supports irregular flat bottles, curved oval bottles and handle-equipped detergent bottles, which traditional vibrating unscramblers cannot process.
Simplified Electrical & Mechanical Maintenance: One integrated control cabinet replaces two independent electric systems. It removes redundant wiring faults, shortens daily maintenance time and reduces electrician staffing pressure.
Buffering Anti-Collision Design: Soft silicone baffles reduce bottle collision abrasion, lowering bottle rejection rate and reducing packaging material loss for high-grade cosmetic containers.
Quick Product Changeover: One-click recipe storage for different bottle specifications. Workers switch packaging products within 10 minutes without mechanical disassembly, minimizing production changeover downtime.
Integrated Unscrambler Filler vs Split Packaging Line
Built-in synchronous linkage structure fundamentally distinguishes integrated feeding-filling machines from separated production lines, solving front-end feeding bottlenecks of traditional bottling lines.
Comparison Item | Unscrambler Integrated Filling Machine | Split Unscrambler + Filling Line |
Running Synchronization | 100% synchronous linkage | Severe speed deviation |
Bottle Sorting Vibration | Low rotary vibration | Intense vibrating shock |
Irregular Bottle Adaptability | Support all shaped bottles | Only standard round bottles |
Electrical Failure Rate | Ultra-low integrated circuit | High disjointed wiring fault |
On-Site Footprint | Compact integrated layout | Extra connecting conveyor space |
Applicable Scenario | Multi-style bottle batch production | Single fixed bottle mass production |
Industrial Application Scenarios
This feeding-linked filling machine targets factories with diversified packaging specifications, solving frequent line halts caused by messy bottle types.
Household Detergent Industry: Fill multi-shape detergent, fabric softener and dish soap with handle bottles. Adapt to mixed bottle batch production, cut frequent equipment debugging work.
Craft Beverage Industry: Fill sparkling water, fruit soda and carbonated drinks. Low-vibration feeding avoids gas loss and liquid foaming, stabilizing beverage flavor and filling volume.
Daily Cosmetic Industry: Package curved skincare bottles, flat toner containers and shaped makeup lotion bottles. Soft bottle protection structure reduces cosmetic bottle surface scratch defects.
Water Treatment Chemical Industry: Fill liquid scale remover and water purifier agent. Stable continuous feeding avoids chemical liquid intermittent overflow, improving workshop operational safety.
Health Syrup Manufacturing: Fill irregular-shape health oral syrup glass bottles. Slow-speed anti-collision feeding prevents fragile bottle cracking, reducing packaging material loss.
